How Battery Modules Work – Powering Smart Energy Systems
- a few seconds ago
- 12 min read
Finding reliable ways to scale energy storage often feels complex for facility managers in Central Europe. As regulations shift and renewable generation grows, the structure of your battery modules becomes more important than ever. This guide breaks down the key components and chemistry types of battery modules and clarifies how they connect with modern energy management systems for efficient, long-term performance.
Table of Contents
Key Takeaways
Point | Details |
Battery Modules Structure | Battery modules consist of interconnected cells, allowing for scalable energy storage capacity and flexible system design. |
Lithium-Ion Technology | Most modern battery systems use lithium-ion technology for its high energy density and cycle life, critical for long-term financial performance. |
Dynamic Tariff Optimization | Integration with Energy Management Systems enables real-time adjustments to maximize cost savings based on electricity pricing fluctuations. |
Cost Considerations | Total ownership costs must account for installation, maintenance, and potential degradation, as underestimating can lead to financial challenges. |
Defining Battery Modules and Core Components
A battery module is the foundational building block of modern energy storage systems. It’s a collection of individual battery cells connected together in series or parallel to achieve specific voltage and capacity targets.
Think of it this way: a single cell is like a single brick, but a module is an organized wall made from those bricks. When you need bigger energy capacity or higher voltage, you assemble more cells into a module structure.
The relationship between cells, modules, and packs follows a clear hierarchy:
Cells: The smallest unit containing chemical energy storage
Modules: Groups of cells connected and housed together
Packs: Complete assemblies of multiple modules with management systems
Understanding this structure matters for Central European energy managers because it determines how flexible your system can be. A modular design means you can scale storage capacity by adding modules rather than replacing entire systems.
The Four Essential Internal Components
Every battery module contains four key internal parts that work together to store and release electrical energy. These components are present in every cell within your module:
Cathode: The positive terminal where chemical reactions occur
Anode: The negative terminal completing the electrical circuit
Separator: A porous barrier preventing short circuits while allowing ion movement
Electrolyte: The chemical medium enabling ion transfer between terminals
When these four parts function together, chemical energy converts to electrical current flowing through your energy management system.
Lithium-Ion Chemistry in Smart Systems
Most modern battery modules for commercial and residential applications use lithium-ion technology. This chemistry offers superior energy density and cycle life compared to older lead-acid designs.
For your facility’s energy management strategy, lithium-ion modules provide consistent performance across thousands of charge-discharge cycles. This reliability directly affects your 25-year financial modeling and return-on-investment calculations.
Different lithium-ion variants exist, including LFP (lithium iron phosphate) and pre-lithiated LFP formulations. Each chemistry type has distinct voltage characteristics, thermal behavior, and cycle durability profiles.
Battery modules convert stored chemical energy into usable electrical energy through precisely managed internal reactions—the reliability of this conversion determines your system’s long-term cost savings.
How Modules Connect to Create Capacity
When cells connect in series, voltages add together but capacity stays the same. When they connect in parallel, capacity increases while voltage remains constant.
Your Belinus EMS manages these electrical configurations automatically. The system optimizes how current flows through connected modules based on your facility’s real-time energy demands and grid pricing signals.
This modular flexibility means you’re not locked into fixed specifications. As your energy consumption patterns change—adding EV chargers or expanding operations—you can integrate additional modules into your existing system without complete redesign.
Pro tip: When designing your storage system, prioritize modules with integrated battery management systems (BMS) that communicate directly with your Energy Management System, enabling 15-minute dynamic tariff optimization and real-time arbitrage opportunities.

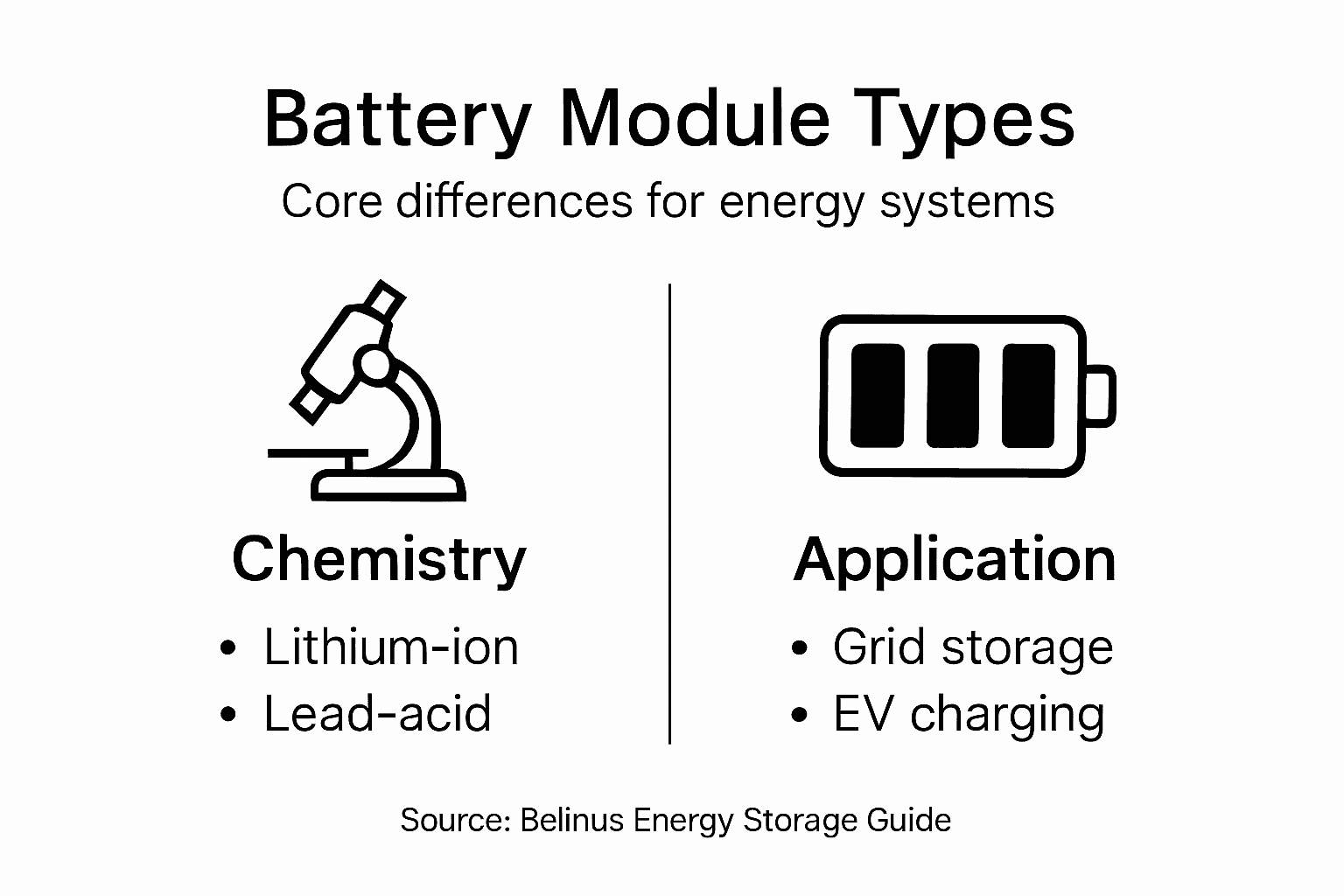

Types of Battery Storage Modules Explained
Battery storage modules come in several distinct types, each designed for specific applications and performance requirements. Your choice depends on your facility’s energy goals, budget constraints, and integration timeline.
The most common distinction separates modules by their internal chemistry. Each chemistry type delivers different energy density, cycle life, and cost profiles that directly impact your return-on-investment calculations.
Lithium-Ion Modules: The Industry Standard
Lithium-ion technology dominates modern energy storage systems for residential, commercial, and utility-scale applications. Within this category, two primary chemistries lead the market:
Nickel Manganese Cobalt (NMC) modules deliver high energy density and excellent performance in demanding applications. They handle rapid charge-discharge cycles efficiently, making them ideal for grid services and arbitrage opportunities through your Belinus EMS.
Lithium Iron Phosphate (LFP) modules prioritize safety and longevity. They withstand more charge cycles—often exceeding 5,000 cycles—and maintain stable performance across temperature variations common in European climates. LFP modules cost less per cycle over their lifetime despite higher upfront prices.
Comparing lithium-ion battery technologies reveals that LFP excels in cost-per-kilowatt-hour for long-duration storage, while NMC performs better in high-power, short-duration applications.
Here’s a quick comparison of leading battery module chemistries for energy storage systems:
Chemistry Type | Energy Density | Cycle Life | Safety Level | Example Application |
NMC (Nickel Manganese Cobalt) | High (compact design) | 2,000–4,000 cycles | Moderate (careful BMS) | Grid services, fast cycles |
LFP (Lithium Iron Phosphate) | Moderate | 4,000–8,000 cycles | High (stable chemistry) | Commercial storage, long-term |
Graphene Supercapacitors | Low | 10,000+ cycles | Very high (non-flammable) | Fast response, frequent cycling |
Solid-State | Very high (future) | Projected 5,000+ cycles | Expected high | Under development |
Duration Ratings and Your System Design
Modules are classified by their discharge duration—how long they can deliver power at full capacity before depleting.
2-hour modules: Perfect for peak shaving and demand management
4-hour modules: Balanced for daily cycling and grid services
6-8+ hour modules: Suited for overnight storage and seasonal shifting
Your facility’s usage pattern determines the optimal duration. Commercial operations with consistent daytime demand benefit from shorter-duration modules, while facilities targeting maximum energy savings through off-peak charging need longer duration specifications.
Emerging Storage Technologies
Beyond lithium-ion, alternative technologies are gaining traction in European markets. Graphene supercapacitors like the Energy Wall G1 offer rapid charge-discharge capabilities with extended cycle life. These excel in applications requiring frequent power cycling.
Solid-state and flow battery technologies remain in development phases but promise significant improvements in energy density and safety profiles within the next 5-10 years.
Module selection directly affects your energy management system’s effectiveness—matching chemistry type to your facility’s specific demand patterns determines whether you achieve 15-20% energy savings or closer to 30-35%.
Making Your Selection
Consider these factors when evaluating module types:
Cycle requirements: How many charge-discharge cycles your system performs annually
Temperature performance: Operating conditions in your specific region
Integration complexity: Compatibility with your existing Belinus EMS
Scalability needs: Whether you’ll expand capacity in future years
Pro tip: Start with LFP modules for most Central European applications—their superior cycle life and thermal stability in variable climates deliver better long-term economics than NMC, even if upfront costs appear higher on your initial quotation.
How Battery Modules Integrate With EMS
Your battery modules sit at the core of your energy management system, but integration goes far beyond simple physical connection. The Belinus EMS communicates with modules continuously, optimizing their charge and discharge behavior based on real-time grid conditions, electricity pricing, and your facility’s energy consumption patterns.
Think of your EMS as the brain and battery modules as the muscles. The brain constantly receives data, makes decisions, and sends commands to keep everything operating at peak efficiency.
Real-Time Data Collection and Monitoring
The EMS collects critical information from each module every 15 minutes or faster. State estimation and charge control mechanisms track precise battery status, including state of charge, temperature, and voltage across all connected modules.
This continuous monitoring serves multiple purposes:
Safety: Early detection of abnormal conditions preventing damage or hazards
Performance optimization: Adjusting charging rates based on real-time conditions
Longevity: Preventing deep discharges or overcharging that reduce module lifespan
Cost tracking: Recording energy flows for financial analysis and reporting
Your energy managers access this data through native mobile apps or web dashboards, seeing exactly what each module is doing at any moment.
Dynamic Tariff Optimization
The Belinus EMS excels at exploiting European electricity pricing variations. Markets like Germany, Austria, and Poland offer dynamic hourly rates that fluctuate based on grid demand and renewable energy availability.
Your system automatically charges modules during low-price periods—often early morning or windy nights—and discharges during peak-price hours. This arbitrage capability turns battery modules from simple storage into revenue-generating assets.
For commercial facilities with EV charging fleets, the EMS coordinates battery discharge timing with ETAP Pro charger scheduling, ensuring optimal cost management across all energy uses.
Grid Services Integration
Beyond serving your facility, battery modules can participate in grid stabilization services. The EMS manages frequency regulation, demand response, and energy trading programs when regulations permit your location.
This dual-purpose operation means your batteries generate additional revenue while supporting grid reliability. Central European markets increasingly offer compensation for these services, making them critical to your system’s financial performance.
Effective EMS-module integration transforms passive battery storage into an active profit center—automating decisions that would require constant human attention while achieving superior outcomes.
Integration Complexity and Requirements
Proper integration requires specific technical foundations:
RESTful API compatibility: Enables third-party system connections
Real-time communication protocols: MQTT or similar for millisecond-level responsiveness
Cyber security standards: Protecting critical infrastructure from unauthorized access
Regulatory compliance: Meeting local grid codes and energy trading requirements
Belinus PCS units and our branded power conversion systems ensure seamless integration with the EMS, eliminating compatibility delays that plague mismatched hardware combinations.
Pro tip: Request API documentation and integration testing before finalizing any battery module purchase—poor EMS-module communication can reduce your annual energy savings by 15-25% compared to properly optimized systems.
Real-World Applications in Central Europe
Battery modules aren’t theoretical concepts—they’re actively transforming energy systems across Central Europe right now. From manufacturing facilities in Germany to commercial operations in Poland, proven deployments show exactly how these technologies deliver measurable financial and environmental benefits.
The region faces unique challenges that make battery modules essential: variable renewable generation from wind and solar, aging grid infrastructure, and rising electricity costs. Smart companies are responding with integrated solutions.
Industrial Manufacturing and Peak Shaving
Manufacturers across Germany, Austria, and Czech Republic deploy battery modules to manage demand charges—the expensive fees utilities levy during peak consumption hours. A typical automotive parts supplier using 2-4 MW of production capacity can reduce annual demand charges by 20-30% through strategic battery discharge during peak periods.
These facilities charge modules during off-peak night hours when electricity costs €0.08-0.12 per kilowatt-hour, then discharge during day operations when peak rates reach €0.25-0.35 per kilowatt-hour. The difference covers battery costs within 5-7 years.
Renewable Energy Smoothing
Solar installations across Central Europe generate inconsistent output. Morning and evening production peaks don’t align with afternoon facility demand. Hybrid storage systems combining multiple battery technologies solve this timing mismatch perfectly.
A facility with rooftop solar can now capture 100% of generation instead of 60-70% by storing midday excess. Evening and cloudy-day operations then draw from stored energy, maximizing self-consumption rates and grid independence.
Commercial Real Estate and Grid Services
Office buildings and retail centers in Vienna, Warsaw, and Berlin increasingly participate in grid stabilization services. EU regulatory frameworks supporting battery storage deployment create formal markets where battery modules earn revenue through frequency regulation and demand response programs.
A 500 kWh system can generate €3,000-8,000 annually from grid services while simultaneously serving the building’s internal energy needs. This dual-purpose operation accelerates return-on-investment significantly.
Electric Vehicle Charging Infrastructure
Companies managing EV charging networks use battery modules to prevent grid connection upgrades costing €100,000-500,000. Instead of expensive grid reinforcement, a 200-400 kWh battery module buffers charging demand, spreading peak loads across time.
Fleet operators using ETAP Pro chargers coordinated with battery modules optimize charging timing automatically:
Charge during low-price overnight hours
Discharge during day to support charging demand
Participate in grid services when vehicles aren’t actively charging
District Heating Integration
Some innovative Central European projects combine battery storage with thermal systems. Off-peak electrical charging powers heat pumps during cheap-rate hours, storing thermal energy for daytime space heating and hot water needs.
This emerging application extends battery benefits beyond electricity, improving overall facility efficiency by 15-25%.
Battery modules in Central Europe aren’t future technology—they’re delivering 20-35% energy cost reductions and grid revenue today for forward-thinking facility managers.
Pro tip: Contact local grid operators early in your planning process to understand demand response programs and grid service compensation available in your specific region—some areas offer substantially higher rates than others, making your investment economics entirely different.
Risks, Costs, and Common Pitfalls
Battery module investments require serious upfront capital and ongoing operational commitment. Understanding realistic costs and common failure points separates successful deployments from expensive regrets.
Many energy managers underestimate total ownership costs or overlook safety considerations during planning. The good news? These mistakes are entirely preventable with proper due diligence.
Understanding True Capital Costs
Initial capital expenses for battery storage systems typically run €800-1,200 per kilowatt-hour for residential and commercial installations. For a 100 kWh system, expect €80,000-120,000 before installation, controls, and integration.
But upfront hardware costs tell only half the story. You must also budget for:
Installation and civil works: €15,000-40,000 depending on site complexity
Electrical integration and controls: €10,000-25,000
EMS integration and commissioning: €8,000-20,000
Permits and grid connection: €5,000-15,000
Total installed costs often reach €1,100-1,500 per kilowatt-hour. Underestimating these figures means projects fail financial analysis halfway through.
Below is a summary of the main cost factors and their business implications for battery module investments:
Cost Factor | Typical Range | Impact on Project |
Hardware and Modules | €800–1,200 per kWh | Major upfront expense |
Installation & Integration | €30,000–80,000 per system | Site complexity dependent |
Annual O&M Expenses | 1–2% of installed cost | Influences payback period |
Degradation over 10 Years | 5–10% loss typical | Reduces usable capacity |
Permitting & Grid Fees | €5,000–15,000 | May delay commissioning |
Operational and Maintenance Costs
Battery modules aren’t “set and forget” investments. Ongoing expenses include annual maintenance, performance monitoring, and eventual component replacement.
Expect 1-2% of installed cost annually for maintenance and monitoring. A €100,000 system costs €1,000-2,000 yearly just to keep operating optimally. Warranty coverage varies dramatically—some manufacturers offer 10-15 years while others provide only 5 years with significant degradation clauses.
Thermal Runaway and Safety Risks
Safety protocols for battery energy storage systems address fire hazards and chemical risks that demand serious attention. Lithium-ion modules can experience thermal runaway—uncontrolled temperature escalation leading to fires—if internal management systems fail.
Proper safeguards include:
Battery management systems (BMS): Monitoring each cell continuously
Thermal management: Active cooling preventing temperature extremes
Physical separation: Installing modules away from critical facility areas
Fire suppression systems: Specific equipment rated for lithium fires
Skimping on safety infrastructure creates liability exposure exceeding your equipment cost.
Degradation and Performance Decline
Battery modules lose capacity over time—typically 0.5-1% annually for quality LFP systems. After 10 years, a module rated at 100 kWh might deliver only 95 kWh. Your financial models must account for this reality.
Cheaper modules degrade faster. Saving €5,000 upfront on inferior equipment often costs €15,000-30,000 in lost performance over the system lifetime.
Common Planning Pitfalls
Energy managers frequently make these mistakes:
Oversizing systems based on theoretical maximum needs rather than realistic demand patterns
Ignoring integration complexity that delays commissioning 3-6 months
Underestimating site-specific challenges like weight limits, clearance issues, or grid connection constraints
Selecting incompatible hardware requiring expensive retrofits or replacements
Failing to train staff on system operation and emergency procedures
Careful cost planning and risk assessment transform battery modules from budget disasters into profitable investments—cutting corners today creates six-figure problems tomorrow.
Pro tip: Build a 15-20% contingency budget into your initial project estimate and allocate dedicated resources for integration testing before going live—most projects overrun timelines and costs precisely where planning was weakest.
Empower Your Energy System with Advanced Battery Modules and Intelligent Management
Understanding how battery modules work is key to overcoming challenges like optimizing energy storage, extending system longevity, and maximizing financial returns. If managing chemistry types such as lithium-ion LFP or integrating dynamic tariff optimization feels complex, you are not alone. Achieving seamless communication between your battery modules and Energy Management System is essential to unlock real-time arbitrage and grid services revenue.
At Belinus, we specialize in delivering tailored energy storage solutions integrated through our centralized Energy Management System that automates 15-minute tariff optimization and fleet management. Our modular battery storage options, including scalable Utility Storage and cutting-edge graphene supercapacitors, empower your facility to adapt as your energy demands evolve. With easy API integration and intuitive mobile monitoring, your system performs smarter every day.
Take control of your energy future today. Visit Belinus to explore powerful commercial and residential solutions complete with grid services, real-time management, and custom designs that meet your specific needs. Don’t let system complexity hold you back when 20-35 percent energy cost reductions and new revenue streams are within reach. Connect with us now and turn your battery modules into profit centers.
Frequently Asked Questions
What is a battery module?
A battery module is a collection of individual battery cells connected in series or parallel to meet specific voltage and capacity targets, functioning as a fundamental component of energy storage systems.
What are the main components of a battery module?
A battery module contains four key parts: the cathode (positive terminal), anode (negative terminal), separator (to prevent short circuits), and electrolyte (which enables ion transfer between terminals). These components work together to convert chemical energy into electrical energy.
How do lithium-ion battery modules differ from other types?
Lithium-ion battery modules generally offer higher energy density and longer cycle life compared to older technologies like lead-acid batteries. Two common lithium-ion chemistries are Nickel Manganese Cobalt (NMC), which excels in high-power applications, and Lithium Iron Phosphate (LFP), known for its safety and longevity.
How can battery modules optimize energy costs?
Battery modules can optimize energy costs by charging during low electricity price periods and discharging during high-price periods, effectively participating in dynamic tariff optimization and potentially providing additional revenue through grid services.
